LDR6 Passive Preamplifier Update

Originally published 2012-03-19.

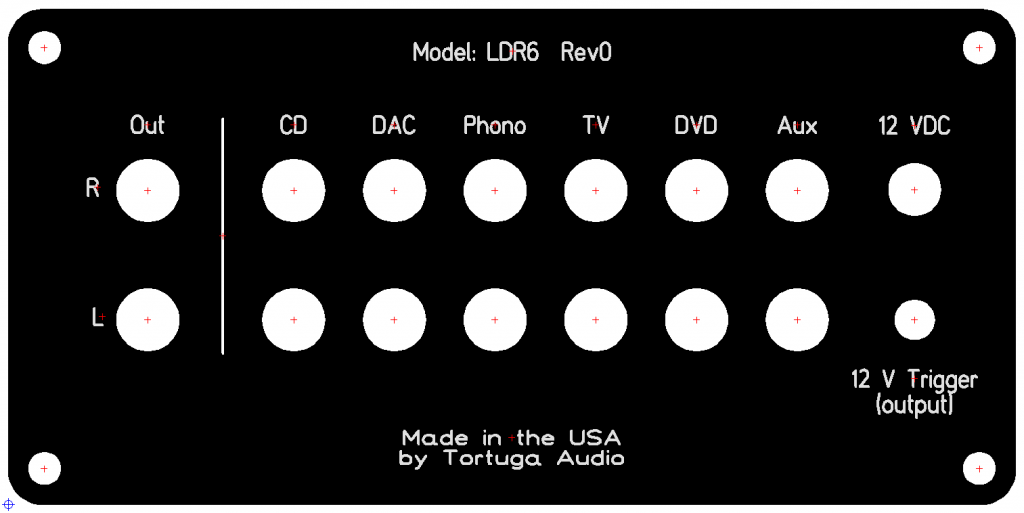

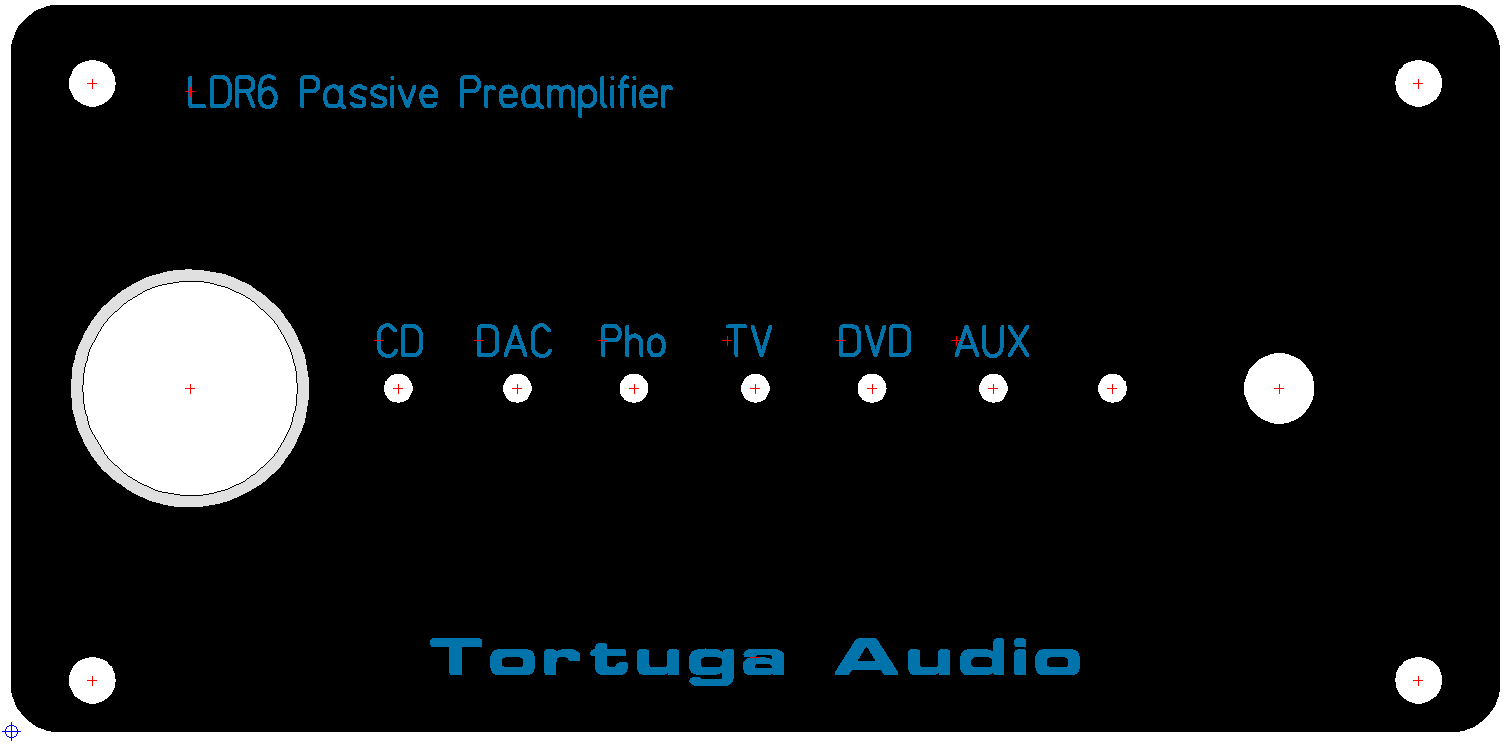

Here is the artwork for the front and back panels of the LDR6 Passive Preamplifier.

Should have the prototype panels in about a week for final fit up.

Meanwhile, the 2nd round circuit board design has been sent out for fabrication after shaking down the first prototype and tweaking the design and layout.

If all goes well, the board and panel design work will be completed this month. All that remains then is fine tuning the software that allows full control both manually and via a remote. It looks like product launch by late Q3-2012.
