V25 preamp controller

V25 preamp controller

Price: $299

This is a legacy product and is no longer produced or sold by Tortuga Audio.

The V25 is Tortuga Audio’s 4th generation LDR based preamp volume controller board for use as stand alone passive preamp or as better sounding volume control within an active preamp.

The V25 has been superseded by the V4

Click on this box/text to jump to the current V4 model of our LDR preamp controller.

Stepped attenuator and preamp controller

The V25 is a digitally controlled, analog 2 channel stepped attenuator and preamp controller. Unlike most audio attenuation technology the V25 utilizes light dependent resistors (LDRs) for both attenuation and in lieu of conventional relays for input switching.

The V25 Preamp Controller (Rev A) was released in April, 2017 and subsequently 2 minor hardware revisions have been made.

Noteworthy features of the V25 include the following:

  • Smooth 100 steps of attenuation over a 60 dB range at ~0.6 dB per step

  • Input switching of up to 6 stero inputs

  • 2 units can be combined for balanced audo

  • Fully remote controllable via simple infrared Apple remote

  • Manually controllable via rotary encoder/pushbutton with limitations

  • Smooth muting

  • Left/right channel balance

  • LDRs employed both for attenuation and input switching

  • Built-in self-contained LDR calibration of replaceable plug-in LDR modules

  • High contrast 256×64 bit white-on-black OLED display with interactive menu structure

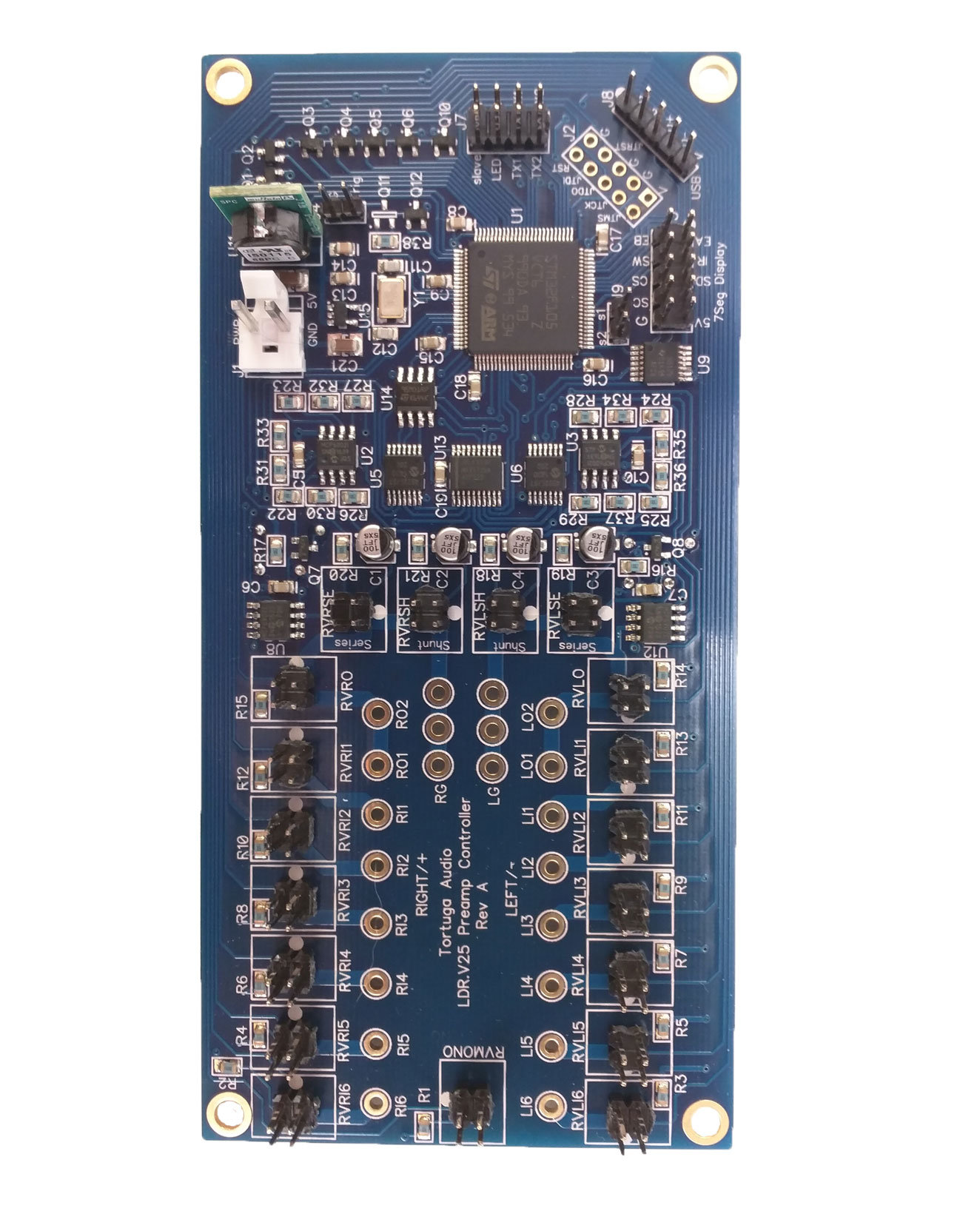

The V25 board is shown below with annotation of the key components and control interface points. Please refer to V25 Specifications section for more detail.

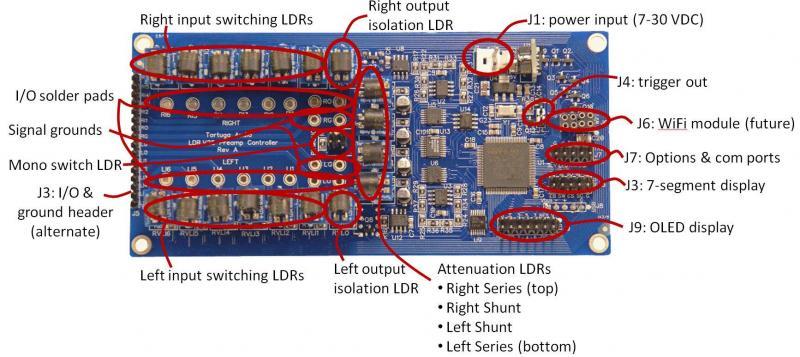

V25 preamp controller port - annotated

The V25 is powered by a nominal 12V supply (not included) which is coverted to both 5V and 3.3V for use within the board. The V25 is driven by an embedded ARM microcontroller. Control interfaces include a remote control infrared receiver, UART serial communication ports, trigger outputs, USB port, OLED display, and most significantly the LDRs themselves which contain light emitting diodes to modulate their variable resistance.

The V25 is classified as a unity gain “passive” preamp device with no active amplification or buffering of the audio signal. That means there is no direct connection to, or manipulation of, the audio signal by a power supply. Despite the sophistication of the V25 design, each audio channel signal “sees” only a voltage divider composed of 2 LDRs in a classic series/shunt L-Pad configuration that emulates a potentiometer.

Hardware versions

The 3 hardware versions of the V25 board include A, B and C with A being the original board as shown above. The version letter is printed on the V25 board on the left side under the name of the board.

The differences between these versions relate solely to the display interfaces and the USB interface. These differences are summarized in the table below. All 3 versions utilize the same firmware which recognizes these differences.

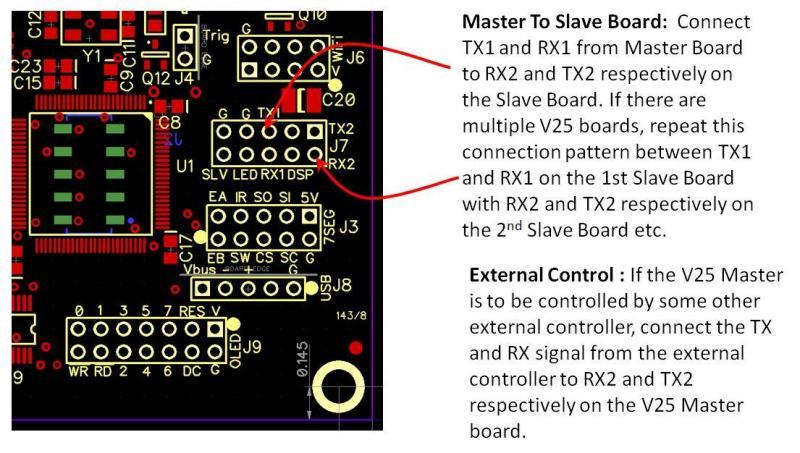

V25 master slave serial data link diagram

Dual board balanced audio

Balanced stereo audio is a minimal example of using the V25 in a multi-channel audio application. Balanced stereo audio requires two V25 boards – 4 channels. Balanced audio input and output wiring is described in another section/topic on DIY audio information.

Display options

The V25 was designed to work together with a visual display. Version A of the V25 initially only worked with our earlier 7-segment LED display. Subsequent firmware updates enabled the V25 to work with our newer OLED display assembly.

Interfacing with each display type is discussed briefly below.

7-segment display

The connection from the V25 board to the DM1 7-segment display varies depending on the version of the V25 board. There are 3 versions of the V25 board – A, B & C. Both A & B use a single 10 pin ribbon cable from V25.J3 to DM1.J1. Version V25.C requires several individual female-female square pin jumper wires to connect from pins on V25 headers J8 and J9 to DM1 header J1.

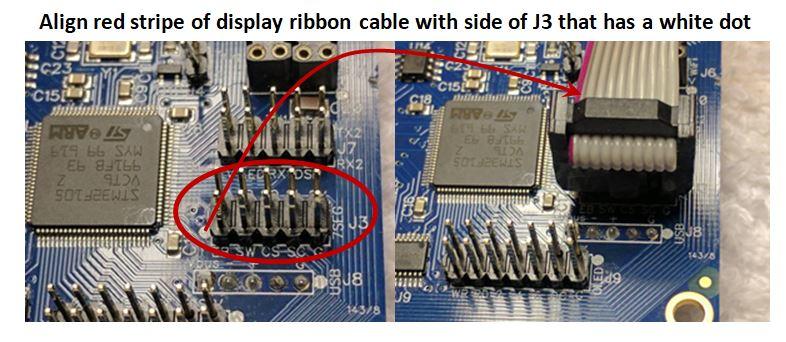

In the case of versions A & B please note that the red stripe on the ribbon cable must be aligned with the side of the J1 and J3 headers that has the white dot.

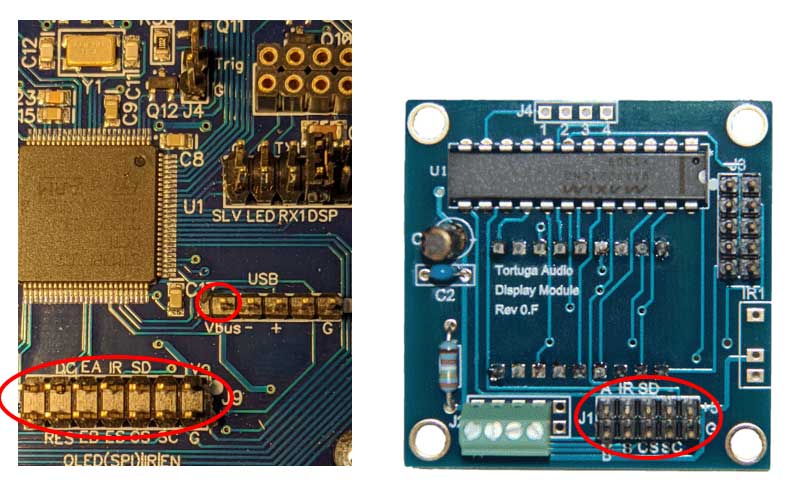

V25 preamp controller 7-segment display connection

The table below shows the V25 to DM1 connections for each of the 3 versions of the V25 board. Some of the version C connections are not strictly required for the DM1 itself but are signals for the IR remote sensor and manual encoder that interface on or through the DM1.

product image

OLED display

The OLED Display Module (sold separately) is a highly interactive, easy to use, menu driven user control interface for configuring and controlling the V25.

The OLED display connects to the V25 via a 14 pin ribbon cable to the V25.J9 header.

Please refer to a separate document on the OLED display for more detail on its interface.

dfdfa

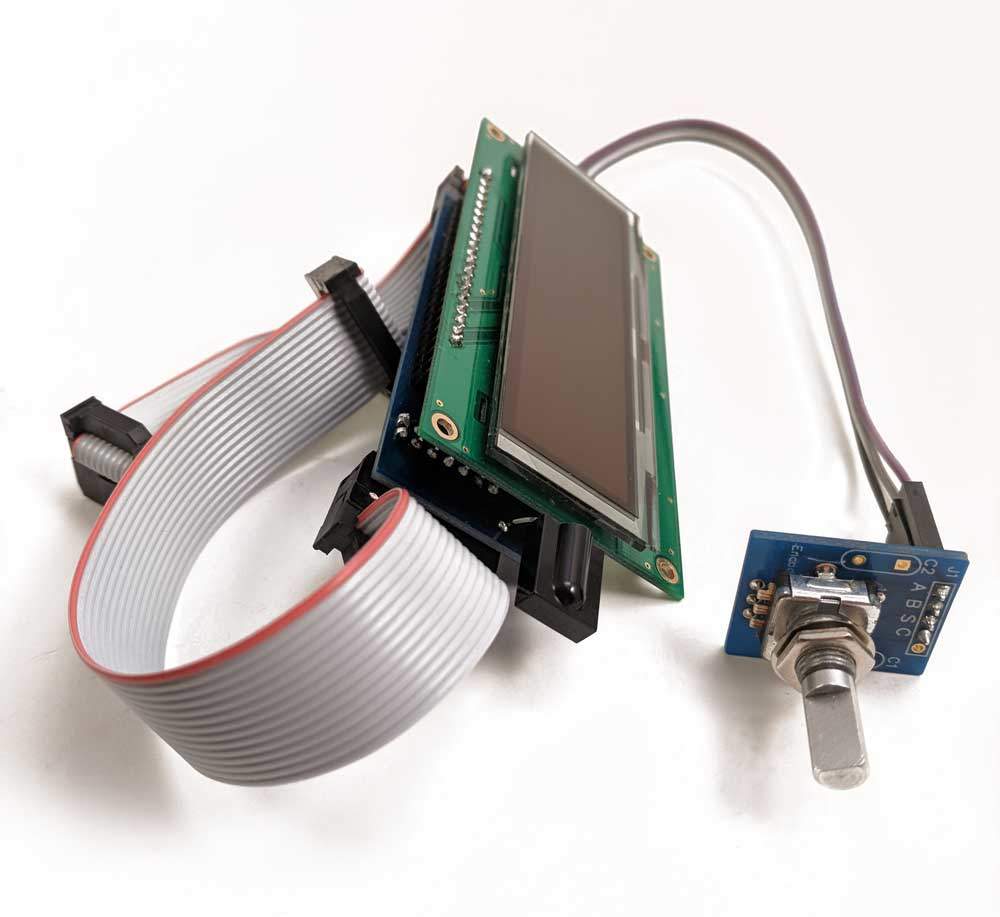

OLED display module - with cables

External control via UART | J7

The V25 Preamp Controller Board can be controlled by interfacing it with any PC, microcontroller or programmable device that’s equipped with standard UART serial communications hardware or the equivalent in software. External UART TX and RX signals can connect to the V25 J7.RX2 and J7.TX2 pins respectively.

In order to have reliable UART communications the user should be mindful that both devices share a common ground.

UART Protocol

The UARTs used by the V25 are part of the V25’s microcontroller. They utilize data receipt interrupts, and are considered extremely accurate and reliable. The V25 employs the following UART communications configuration.

  • Baud Rate: 115,200 bps

  • Stop Bits: 1 stop bit

  • Parity: none

  • Data bits: 8

  • Flow Control: none

UART control commands

The control commands available to an external controller are defined in the table below. Collectively these commands should allow for the comprehensive control of the V25 even in the absence of any visual feedback from the V25.

The user accepts all risks in using an external controller and commands to control their V25 controller. These commands are subject to change without notification.

adfa

V25 Compared to the V2?

  • Overall smoother, quieter, more resolving attenuation – it’s just better!

  • Improved built-in LDR calibration algorithm

  • Completely redesigned hardware & software

  • Code rewritten in C

  • 8x larger application memory

  • 2 stage low-noise power regulation

  • Faster 32 bit ARM vs slower 8 bit PIC processor

  • 6 DAC channels vs only 2 for improved LDR control

  • 100 step attenuation vs. 70

  • Graphic OLED display with simple, intuitive interactive menu

  • Provision for future WiFi module

  • Can daisy chain multiple boards for multi-channel control

What’s Included?

  1. V25 board with 3 switchable stereo inputs (up to 3 additional inputs can be added at additional cost)

  2. Monaural mode switching LDR

  3. Mating slip-on power connector with wire crimps

  4. Updated firmware

What Else is Required?

To implement a fully functional passive preamp requires the V25 board plus the following additional items that are sold separately by Tortuga Audio and/or third parties.

  1. Apple Remote

  2. Graphic OLED Display Module assembly including Encoder

  3. 12 V DC power supply (0.5 amp or higher)

  4. RCA/XLR jacks

  5. Wiring and enclosure
